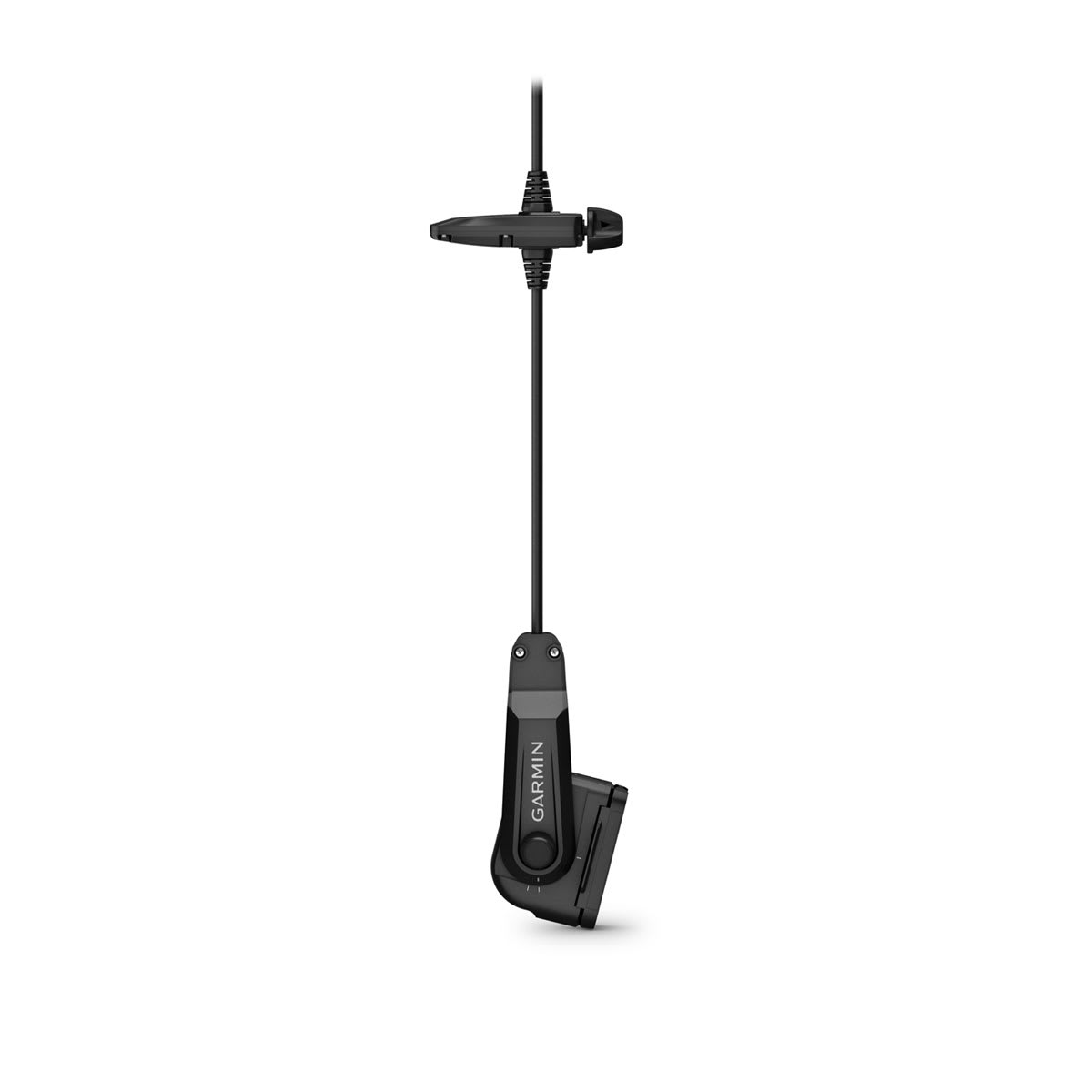

Panoptix™ PS22-IF Portable Live Sonar

$1,099.99

Available on backorder

SKU: 010-01945-10 Category: Tags: , , Brand:

Description

Hop faster between holes with the ultraportable Panoptix PS22-IF transducer. This live sonar transducer has an all-new bracket and rotator — which eliminates the need for a bulky pole mount — as well as a removable lens so you can optimize the sonar beam angle for the water below. Locate schools of fish in real time with two types of Panoptix sonar: LiveVü Forward and LiveVü Down scan modes.

  • Panoptix PS22-IF transducer
  • Transducer rotator and bracket
  • Removable lens
  • Hardware
  • Documentation
General
TRANSDUCER BEAMWIDTH With lens: 12° x 120°
Without lens: 57° x 120°
TRANSDUCER CABLE LENGTH 9.8′ (3 m)
DIMENSION 9.1” x 4.1” x 2.5” (23.1 x 10.4 x 6.4 cm)
WEIGHT 2.60 lbs (1.18 kg)
TEMPERATURE RANGE Operating: 0° C to 40° C
Electrical Features
POWER INPUT 10-32 V
FUSE 4A
Sonar Features
FREQUENCY 417 kHz
TRANSMIT POWER 48 W
MAXIMUM DEPTH 300′
Connections
GARMIN MARINE NETWORK PORTS 1 (standard connector)
Sonar Modes
LIVEVÜ DOWN Yes
LIVEVÜ FORWARD Yes
TRADITIONAL SONAR SOURCE Yes

Additional information

Weight 1 lbs
