Description
SideVü, ClearVü and Traditional CHIRP Sonar with Mapping
| General | |
|---|---|
| Dimension | 15.1” x 10.3” x 3.0” (38.4 x 26.2 x 7.6 cm) |
| Weight | 9.7 lbs (4.4 kg) |
| Water rating | IPX7 |
| Touchscreen | Yes |
| Display Type | FHD, IPS |
| Display Size | 13.6″ x 7.7″; 15.6″ diagonal (34.5 cm x 19.5 cm; 39.7 cm diagonal) |
| Display resolution | 1920 x 1080 pixels |
| Mounting Options | Bail, flush or flat (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.) |
| Input | Touchscreen |
| Maps & Memory | |
|---|---|
| Accepts Data Cards | 2 microSD cards (back of device) |
| Waypoints | 5000 |
| Track points | 50,000 |
| Tracks | 50 saved tracks |
| Navigation Routes | 100 |
| Sensors | |
|---|---|
| GPS | Yes |
| GLONASS | Yes |
| Galileo | Yes |
| Has built-in receiver | Yes |
| Receiver | 10 Hz |
| NMEA 2000 Compatible | Yes |
| NMEA 0183 Compatible | Yes |
| Supports WAAS | Yes |
| Built-in Maps | |
|---|---|
| Built-in Auto Guidance+ | Yes |
| Garmin Navionics+ Inland & Coastal | Yes |
| Tide tables | Yes |
| Optional Map Support | |
|---|---|
| Garmin Navionics+™ | Yes |
| Garmin Navionics Vision+™ | Yes |
| TOPO 100K | Yes |
| Standard Mapping | Yes |
| Garmin Quickdraw Contours | Yes |
| Raster chart support | Yes |
| Chartplotter Features | |
|---|---|
| Smart Mode Compatible | Yes |
| AIS | Yes |
| DSC | Yes |
| Supports Fusion-Link™ compatible radios | Yes |
| GSD Black Box Sonar Support | Yes |
| GCV Black Box Sonar Support | Yes |
| ActiveCaptain® compatible | yes |
| GRID (Garmin Remote Input Device) compatible | Yes |
| Wireless Remote Compatible | Yes |
| Sailing Features | Yes |
| Spoken audio alerts | Yes |
| OneHelm support | Yes |
| Electrical Features | |
|---|---|
| Power Input | 10 to 32 Vdc |
| Typical current draw at 12 Vdc | 3.61 A |
| Maximum current draw at 12 Vdc | 6.07 A |
| Maximum power usage at 10 Vdc | 74.75W |
| Sonar Features | |
|---|---|
| Displays sonar | Yes |
| Power output | 1 kW |
| Traditional sonar (dual frequency/beam) | built-in (single channel CHIRP, 50/70/83/200 kHz, L, M, H CHIRP) |
| ClearVü | built-in 260/455/800/1000/1200 kHz |
| SideVü | built-in 260/455/800/1000/1200 kHz |
| Panoptix™ sonar | Yes |
| LiveScope | Yes |
| Connections | |
|---|---|
| NMEA 2000® ports | 1 |
| NMEA 0183 Input (Rx) Ports | 1 |
| NMEA 0183 output (Tx) ports | 1 |
| Video input ports | 1 (BNC composite) |
| Video output ports | 1 HDMI |
| J1939 ports | 1 |
| Garmin Marine Network Ports | 2 |
| 12-pin transducer ports | 1 |
| USB ports | Yes |
| BLUETOOTH® pairing | Yes |
| ANT+ (Connectivity) | Yes |
| Garmin Wi-Fi network (local connection) | Yes |

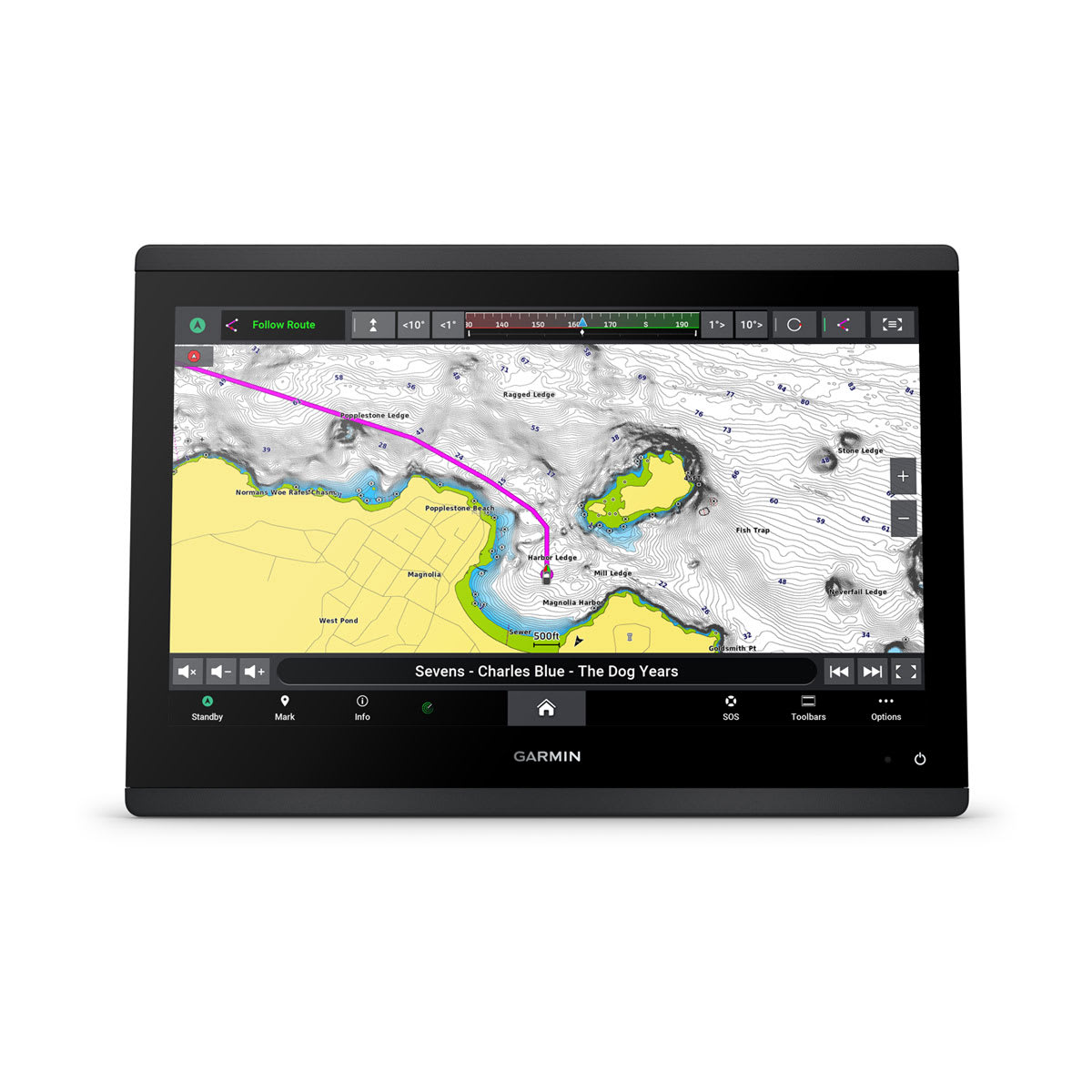

- GPSMAP 1643xsv chartplotter
- microSD™ card preinstalled
- 8-pin transducer to 12-pin sounder adapter cable
- Power cable
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
- Backbone/drop cable (2 meters) and T-connector for the NMEA 2000® network
- Documentation
