Description
With Transducer

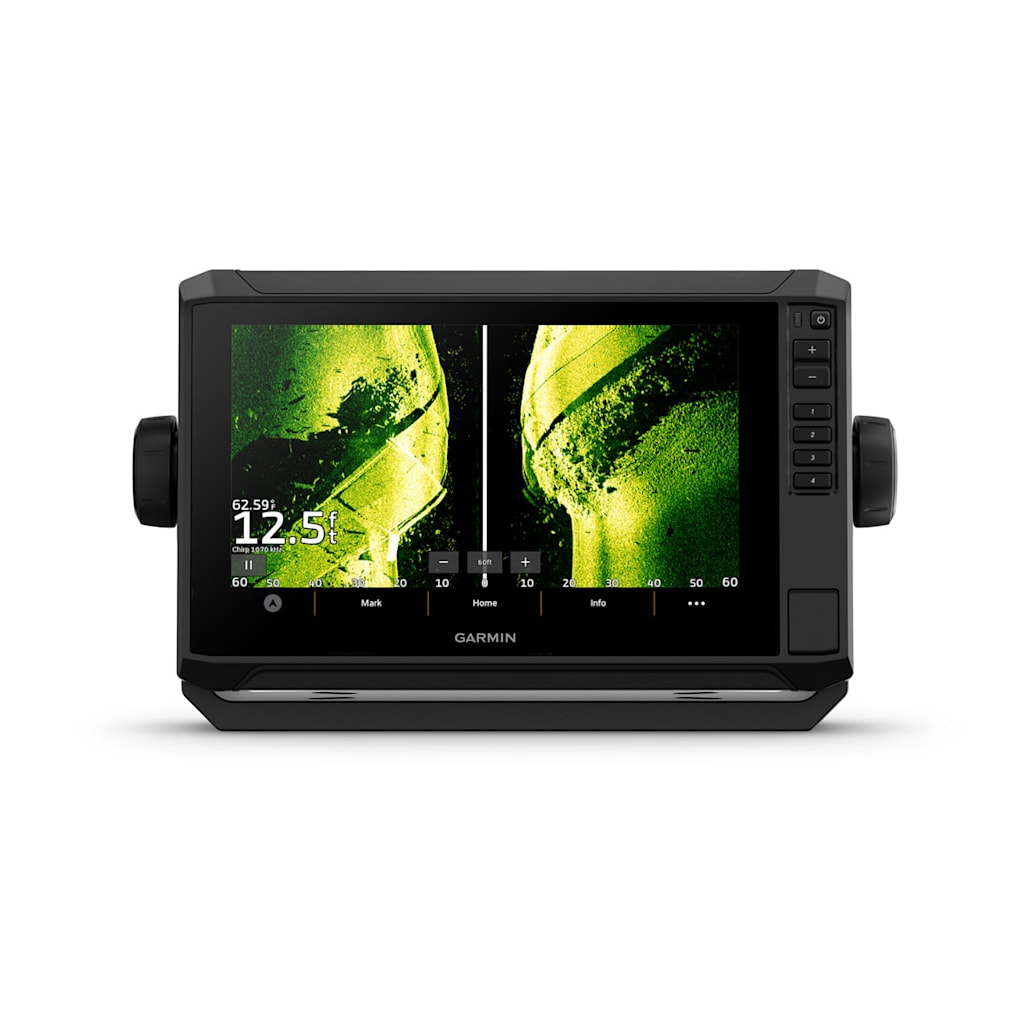

- ECHOMAP UHD2 (device varies depending on selection)
- GT56-TM transducer
- Power cable
- Tilt mount with quick-release cradle
- Protective cover
- Hardware
- Documentation
Without Transducer
- ECHOMAP UHD2 (device will vary depending on selection)
- 12-pin sounder to 8-pin transducer cable
- Power cable
- Tilt mount with quick-release cradle
- Protective cover
- Hardware
- Documentation
Physical & Performance
| Display Size | 7.8″ x 4.5″, 9.0″ (19.8 x 11.5 cm, 22.9 cm) |
| Power Input | 9 to 18 Vdc |
| Display resolution | 1024 x 600 pixels |
| GPS | Yes |
| Dimension | 10.4″ x 6.5″ x 3.2″ (26.4 x 16.6 x 8.0 cm) |
| Receiver | 10 Hz |
| Waterproof | IPX7 |
| Weight | 2.9 lbs (1.3 kg) |
| Mounting Options | Bail or flush |
| Display Type | WSVGA, TN |
Maps & Navigation
| Garmin Navionics+ (Coastal) | yes (see Additional) |
| Garmin Navionics Vision+™ | Yes |
| Accepts Data Cards | 1 microSD™ card; 32 GB maximum size |
| Garmin Navionics+ Inland & Coastal | yes (see Additional) |
| Garmin Navionics+ (Inland) | yes (see Additional) |
| Navigation Routes | 100 |
| Garmin Navionics+™ | Yes |
Features
| Waypoints | 5,000 | |
| Sailing Features | Yes | |
| NMEA 2000 Compatible | Yes | |
| Has built-in receiver | Yes | |
| USB ports | No | |
| TOPO | Yes | |
| SideVü | built-in 260/455/800/1000/1200 kHz | |
| DSC | Yes | |
| Touchscreen | Yes | |
| Additional |
|
|
| LakeVü g3 Ultra | No | |
| NMEA 2000 Compatible | Yes | |
| ActiveCaptain® compatible | yes | |
| Typical current draw at 12 Vdc | 1.72 A | |
| NMEA 2000® ports | yes | |
| Tide tables | yes (see Additional) | |
| GLONASS | Yes | |
| Track points | 50,000 | |
| Panoptix™ sonar | Yes | |
| Garmin Marine Network Ports | 1 | |
| LakeVü g3 & g3 Ultra | Yes | |
| Supports WAAS | Yes | |
| GSD Black Box Sonar Support | No | |
| Maximum current draw at 12 Vdc | 3.5 A | |
| Smart Mode Compatible | No | |
| Built-in Auto Guidance |
|
|
| Maximum power usage at 10 Vdc | 20.7W | |
| BlueChart g3 | No | |
| Standard Mapping | Yes | |
| LakeVu (inland) | No | |
| Built-in Auto Guidance+ | yes (downloadable via ActiveCaptain app) | |
| Displays sonar | Yes | |
| ANT+ (Connectivity) | Yes | |
| GCV Black Box Sonar Support | No | |
| BNC external GPS antenna port | No | |
| Spoken audio alerts | No | |
| BlueChart g3 | Yes | |
| Garmin Wi-Fi network (local connection) | Yes | |
| Input | Touchscreen with Keyed Assist | |
| BeiDou | Yes | |
| Garmin Quickdraw Contours | Yes | |
| BLUETOOTH® pairing | Yes | |
| AIS | Yes | |
| Supports multi-band, multi-constellation GPS | Yes | |
| Raster chart support | No | |
| OneHelm support | No | |
| ClearVü | built-in 260/455/800/1000/1200 kHz | |
| Tracks | 50 saved tracks | |
| Wireless Remote Compatible | No | |
| Supports Fusion-Link™ compatible radios | Yes | |
| Galileo | Yes | |
| LiveScope | Yes | |
| Power output | 500 W | |
| 12-pin transducer ports | 1 | |
| Traditional sonar (dual frequency/beam) | built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP) | |
| GRID (Garmin Remote Input Device) compatible | No |
